Thick And Thin Grader-PTG

Get a Price/Quote

MOQ : 1 Piece

Thick And Thin Grader-PTG Specification

Voltage
220-415 V

Noise Level
Low

Model No
PTG

Operating Temperature
0-50C

Machine Type
Grader

Power Rating
3 HP

Accuracy
High precision

Production Capacity
1-4 TPH

Motor Power
3 HP

Cooling System
Air cooled

Connectivity Options
Basic Electrical Connections

Frame Type
Heavy Duty MS Frame

Frequency
50-60 Hz

Drive
Belt Drive

Lubricating System
Automatic Grease Lubrication

Features
Efficient separation, Low maintenance, Stable structure

Product Type
Thick And Thin Grader-PTG

Technology
Mechanical Sieve Separation

Power Source
Electric

Operating Type
Automatic

Power
1-3 kW

Pressure
Atmospheric

Surface Treatment
Powder Coated

Dimension (L*W*H)
Customizable

Weight (kg)
350-500 kg (approx)

Color
White/Grey

Usage & Applications
Sorting and grading of grains by thickness and size

Material Compatibility
Wheat, Paddy, Maize, Pulses and similar grains

Safety Features
Overload Protection, Emergency Stop

Hopper Capacity
High volume input hopper

Installation
Skid Mounted for Easy Installation

Vibration Control
Adjustable Vibratory Settings

Dust Collection
Integrated Port for Dust Extraction

Screen Type
Removable, easy-clean stainless steel screens

Maintenance Access
Side-open maintenance doors

Energy Efficiency
Designed for Low Power Consumption

Thick And Thin Grader-PTG Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7-10 Days

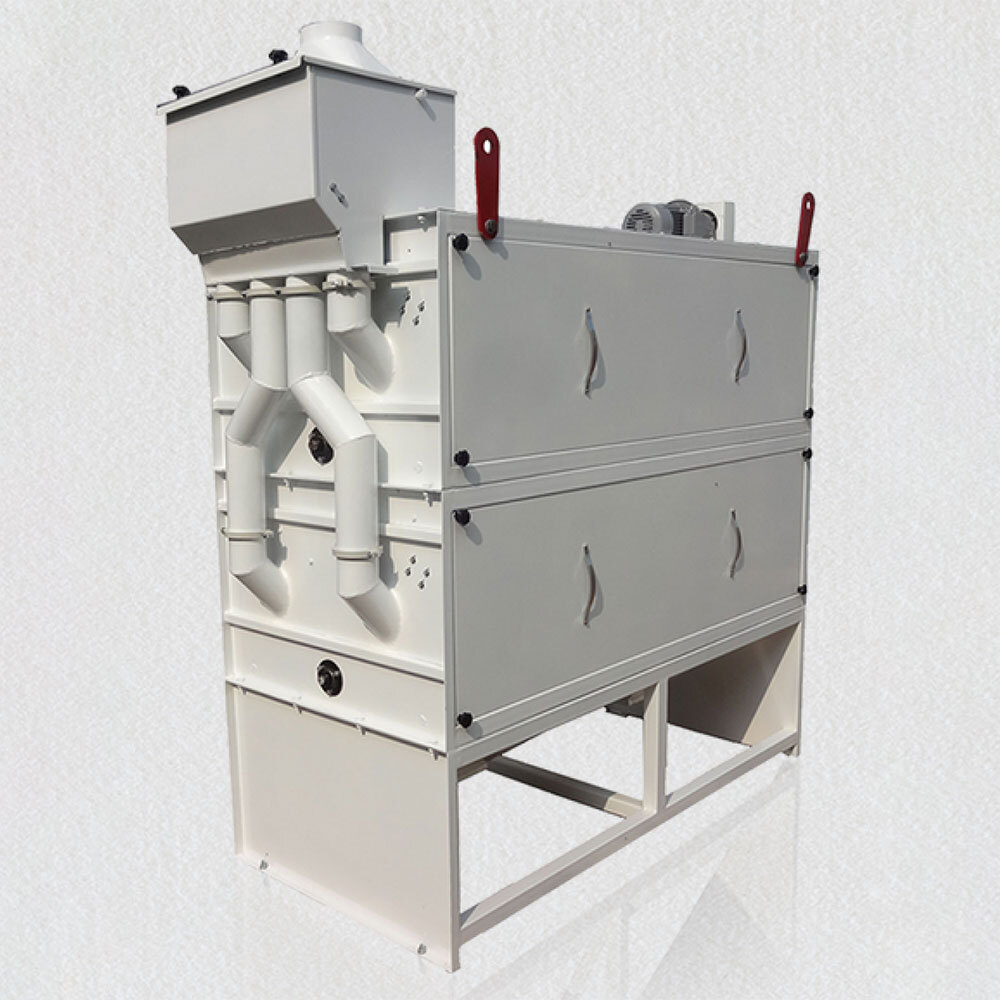

About Thick And Thin Grader-PTG

Perfects thick and thin grain is specifically designed to separate the different thickness grains. When rice passes through the revolving SS screen, the thin/immature or oversized grains are separated efficiently.

Suitable for

All types of rice

Salient Features

Easy maintenance.
Less power requirement.
An integrated cleaning brush ensures perfect cleaning of the screen.
SS 304 cylindrical wire screen for effective separation.

Specification

Model No.	Capacity TPH of Rice	Power, HP	Speed in RPM	Cylinder Size Dia x L, mm - Qty	Overall Dimensions L x B x H, mm	Weight in Kgs (App.)
PTG 2	2	0.5	68	300 x 1715 - 2	2200 x 870 x 2000	470
PTG 4	4	1	68	300 x 1715 - 4	2200 x 870 x 2600	690
PTG 6	6	1.5	68	300 x 1715 - 6	2200 x 870 x 3100	990

High-Efficiency Grain Grading

The PTG grader delivers accurate and efficient sorting of grains by thickness and size, improving product quality and reducing manual labor. Its mechanical sieve separation technology, adjustable vibratory controls, and specialized screens handle a wide range of cereals and pulses, ensuring consistently high throughput for processors and traders.

Designed for Practical Maintenance & Operation

Side-open maintenance doors allow quick, convenient access for inspections, cleaning, and servicing. Removable, stainless steel screens are rust-resistant and easy to clean, reducing downtime. An integrated automatic grease lubrication system enhances longevity and supports dependable, low-maintenance operation, minimizing interruptions and operational costs.

Safe, Clean, and Versatile Performance

The PTG model prioritizes operator safety with overload protection and an emergency stop button. Its integrated dust extraction port and low-noise operation improve workplace comfort and hygiene. The grader's atmospheric pressure operation, adjustable settings, and skid-mounted design make it versatile and simple to incorporate into varied industrial setups.

FAQ's of Thick And Thin Grader-PTG:

Q: How does the PTG grader separate grains by size and thickness?

A: The PTG grader uses mechanical sieve separation technology with adjustable vibratory settings and removable stainless steel screens. Grains pass over the screens, and the vibratory action helps separate them based on thickness and size, ensuring high-precision grading.

Q: What grains and materials is the PTG compatible with?

A: The machine is designed for handling a diverse range of grains, including wheat, paddy, maize, pulses, and similar agricultural products. Its adjustable controls and interchangeable screens support varied material requirements.

Q: Where is the PTG grader typically installed, and how easy is it to set up?

A: The PTG is skid-mounted, making it easy to install in grain processing facilities, storage units, or trading centers. It requires only basic electrical connections (220-415 V) and integrates seamlessly into existing workflows.

Q: What are the key safety and dust control features of this model?

A: For operator safety, the PTG grader includes overload protection and an emergency stop. Its integrated dust extraction port minimizes airborne particles, supporting a cleaner and healthier work environment.

Q: How straightforward is maintenance on the PTG grader?

A: Maintenance is simplified with side-open access doors and removable, easy-clean stainless steel screens. The automatic grease lubrication system ensures smooth operation with minimal manual intervention.

Q: What are the main operational benefits of using the PTG?

A: The PTG delivers high accuracy, energy efficiency, low noise, and stable structure. Its large input hopper and customizable dimensions allow for high-volume, efficient grading with minimal operational costs and high safety standards.
