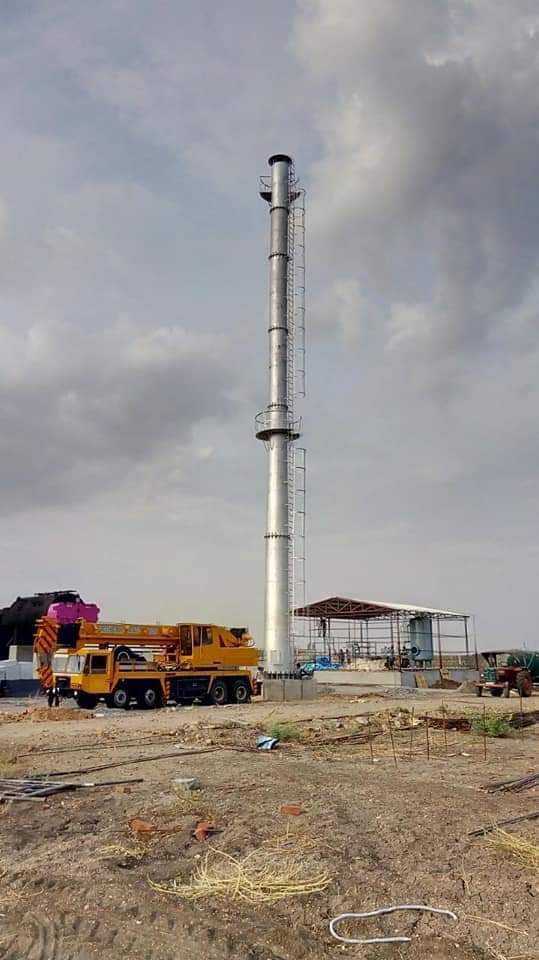

Industrial Chimney

Get a Price/Quote

MOQ : 1 Unit

Industrial Chimney Specification

Fan Type
Centrifugal/axial, industrial grade

Pipe Type
Single-walled or insulated multi-flue pipe

Filter Type
Optional particulate or gas filter as per environmental guidelines

Pipe Suface
Rust-resistant paint or hot-dip galvanized exterior

Pipe Diameter
Specified per capacity, typically 400-1500 mm

Pipe Thickness
5 mm to 16 mm (as per IS/BS code and height)

Suction Power
Depends on blower/fan used, up to 80,000 m3/hr suction

Chimney Type
Self-supported/Structural steel/ISI marked mild steel chimney

Material
Mild Steel, Stainless Steel, FRP (as required)

Installation Type
Outdoor, anchored to concrete foundation

Duct Diameter
Customizable, typically 400 mm to 1500 mm as per industrial design

Exhaust Type
Vertical discharge to atmosphere

Exhaust Capacity
High, designed for large-scale industrial emission (varies per installation)

Motor
Heavy-duty industrial motor (used for forced draft/induced draft variants)

Motor Input Power
Usually 15 HP to 100 HP, depends on required exhaust volume

Voltage
415 V, 3 Phase, 50 Hz (typical for industrial motors)

Switch
Industrial-grade on-off/automation switchboard

Size
Height varies, usually 20 m to 60 m above ground level

Air Flow
Up to 100,000 m3/hr or more

Noise Level
Typically less than 85 dB(A) at 1 meter from base

Lighting
Aviation warning lights on chimney top

Application
Used for boilers, furnaces, DG sets, process plant exhaust

Foundation Type
Heavy RCC base with anchor bolts

Emission Monitoring
Ports for stack emission sampling as per PCB norms

Access Provision
Access ladder and safety cage, platform at required height

Flue Gas Temperature
Designed up to 400C or as specified

Compliance Standards
IS 6533, IS 875, IS 1893 (for seismic) and local PCB guidelines

Design Life
20-25 years under standard maintenance

Customization
Available in self-supported, guy rope supported, or tower type

Chimney Finish
Epoxy painted or hot dip galvanized for weather protection

Wind Load Capacity
Designed as per IS 875/BS standard for regional wind speeds

Industrial Chimney Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Industrial Chimney

Presenting our polished industrial chimney, a gilt-edged solution crafted for cost-effective installation and enduring performance. Engineered with epoxy painted or hot dip galvanized finishes for unmatched weather protection, this praiseworthy chimney meets rigorous compliance standards like IS 6533, IS 875, and IS 1893. Reserve your facility's reliability with robust wind load capacity, heavy RCC base, and flexible customization for any industrial process. Convenient access provisions and emission monitoring ports boost operational safety, making this markdown offering ideal for modern industrial applications across India.

Comprehensive Usage in Industrial Applications

Designed for robust service, our industrial chimneys are used as dependable exhaust systems for boilers, furnaces, DG sets, and a range of process plants. These polished structures are utilized in diverse industrial sectors, including power plants, chemical processing, and manufacturing, to efficiently handle high-temperature flue gases. The chimneys are engineered for outdoor installation, ensuring efficient, vertical discharge of emissions and safeguarding plant environments from harmful exhaust. Their application spans any industrial setup needing reliable, compliant emission control.

Packaging, Delivery, and Accreditation Details

Our industrial chimneys are shipped with meticulous packaging, using crate or customized wrapping to minimize damage during delivery. Shipment is executed through trusted logistic partners, with dispatch timeframes tailored as per client requirements. Expenditure terms are flexible, typically arranged as part advance and balance post-inspection or delivery. Certified as per IS and local PCB norms, each unit includes comprehensive documentation to meet regulatory and safety standards, ensuring a smooth commissioning process for every customer.

FAQ's of Industrial Chimney:

Q: How is the industrial chimney customized for different plant requirements?

A: Industrial chimneys can be tailored in diameter, height, structural type, and material to fit specific installation, emission, and airflow needs of each plant, ensuring optimal performance and code compliance.

Q: What is the process for installing these chimneys at the site?

A: The process involves foundation preparation with a heavy RCC base, followed by assembly and erection using cranes. Access ladders and platforms are fitted, and emission monitoring ports are installed as per requirements.

Q: When should emission sampling and monitoring be conducted?

A: Stack emission sampling should be conducted regularly as per Pollution Control Board (PCB) norms. Monitoring ensures ongoing compliance with emissions standards and helps maintain a safe working environment.

Q: Where can these chimneys be used within industrial settings?

A: These chimneys are suitable for use with boilers, furnaces, diesel generator sets, process exhausts, and a variety of other plant equipment requiring effective flue gas expulsion.

Q: What are the benefits of choosing a hot-dip galvanized or epoxy painted finish?

A: Both finishes provide superior weather resistance and corrosion protection, significantly extending the service life of the chimney and reducing maintenance needs in harsh industrial environments.
