Bran Tip Filter-BTF

Get a Price/Quote

MOQ : 1 Piece

Bran Tip Filter-BTF Specification

Accuracy
High filtration precision

Operating Temperature
Ambient

Cooling System
Air cooled

Voltage
220V/380V

Model No
BTF

Features
Robust construction, Easy Cleaning

Drive
Motor Driven

Lubricating System
Manual/Automatic

Frequency
50 Hz

Machine Type
Bran Filter

Noise Level
Low

Connectivity Options
Standard Electrical Connectors

Production Capacity
600-1500 kg/hr

Motor Power
3 HP

Power Rating
2.2 kW - 3.7 kW

Frame Type
Heavy Duty Steel

Product Type
Bran Tip Filter

Technology
Mechanical Filtration

Power Source
Electric

Operating Type
Automatic

Power
2-3 HP (Approx.)

Pressure
Atmospheric

Surface Treatment
Powder Coated

Dimension (L*W*H)
Customizable as per requirement

Weight (kg)
Approx. 300-500 kg

Color
White and Blue

Usage & Applications
Flour Mill, Bran Filtration, Grain Processing Plants

Installation
Onsite support available

Screen Type
Perforated/Custom Mesh

Discharge Type
Manual/Automatic

Safety Features
Emergency Stop Button

Material of Construction
Mild Steel/SS

Feed Mechanism
Vibratory Feed

After-Sales Service
Available

Bran Tip Filter-BTF Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7-10 Days

About Bran Tip Filter-BTF

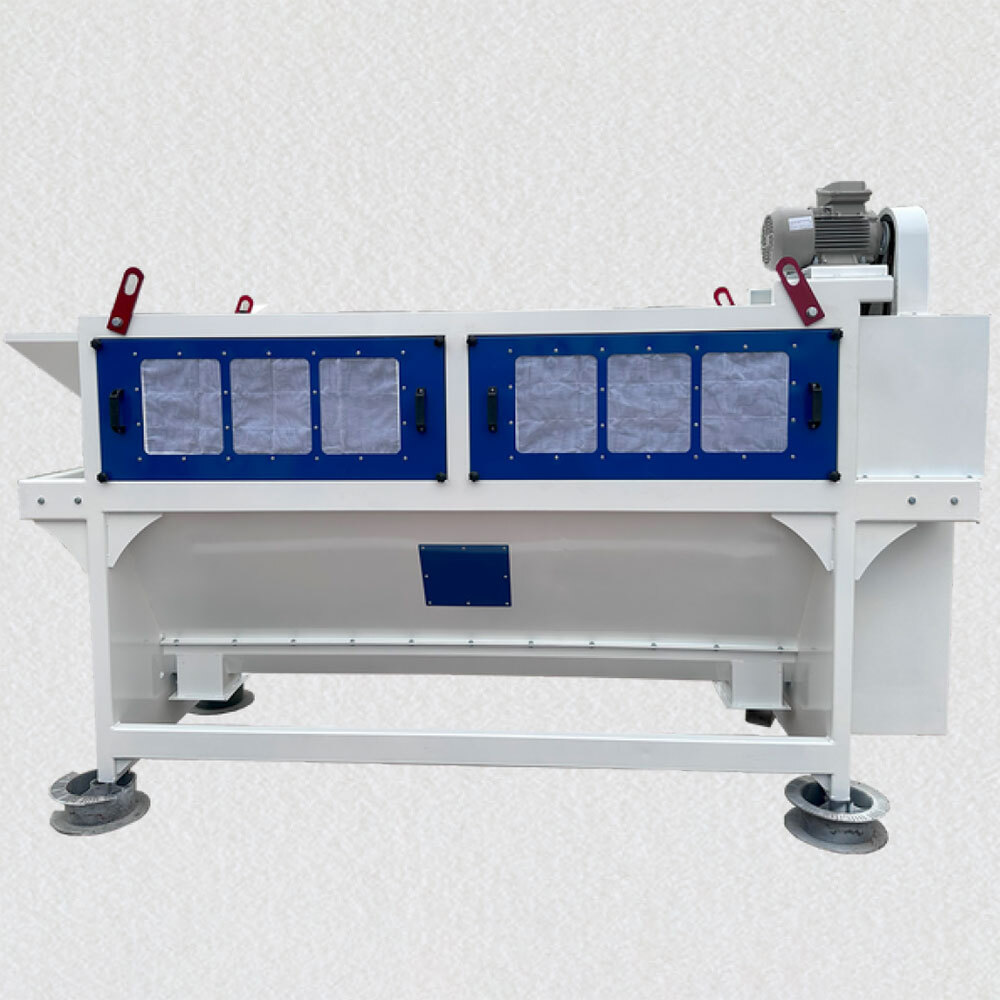

Perfects Bran Tip Filter is used to separate the tips from the bran by use of a SS wire mesh.

Salient Features

Taper lock pulleys for easy maintenance.
Heavy-duty construction & low maintenance.
The SS wire filter ensures accurate separation and long life.
Nylon brush for self-cleaning of wire mesh.

Specification

Model No.	Capacity of Bran, TPH	Power, HP x RPM	Working Speed in RPM	Foundation Dimension in MM (Dia - 14, 4 Holes)	Overall Dimension in MM (L x W x H)	Weight in Kgs (App.)
BTF 1	0.8	2 x 960	20	2361 x 700	3200 x 900 x 1700	750
BTF 2	1.2	3 x 960	20	2861 x 700	3700 x 900 x 1700	900

Versatile Bran Filtration Technology

The Bran Tip Filter-BTF utilizes mechanical filtration to deliver consistent and high-precision separation of bran in flour and grain processing applications. Its customizable mesh and integration of both manual and automatic discharge types provide superior flexibility for various production needs. Designed with operator safety and easy maintenance in mind, it is ideally suited for modern processing plants.

Built for Performance and Safety

Constructed from mild steel or stainless steel and finished with powder coating, the BTF combines sturdiness with longevity. The machine includes a heavy-duty steel frame, an emergency stop button, and air-cooled operation to ensure both user safety and reliable performance. Its low noise levels enhance workplace comfort, while its robust power source guarantees efficient operation even under intensive usage.

Comprehensive After-Sales Support

Customers benefit from comprehensive after-sales service and onsite installation support, ensuring smooth commissioning and prompt technical assistance. The manufacturer, service provider, and supplier-all based in India-ensure timely help for maintenance, troubleshooting, and spare part replacement. This commitment to customer satisfaction minimizes downtime and maximizes productivity for your processing operations.

FAQ's of Bran Tip Filter-BTF:

Q: How does the Bran Tip Filter-BTF improve bran separation in flour mills?

A: The Bran Tip Filter-BTF uses mechanical filtration with customizable mesh screens and a vibratory feed mechanism to achieve high-precision separation of bran from flour. Its robust construction and efficient power-driven system ensure consistent, accurate filtration ideal for grain processing plants.

Q: What are the benefits of onsite installation support for the BTF model?

A: Onsite installation support ensures that the Bran Tip Filter-BTF is correctly set up and integrated into your production line by experienced technicians. This service facilitates a smooth startup, ensures optimal machine performance, and reduces the risk of operational issues.

Q: Where can the Bran Tip Filter-BTF be used effectively?

A: The BTF is designed for use in flour mills, bran filtration operations, and grain processing plants. Its customizable features and high filtration capacity make it suitable for a wide range of industrial applications where bran separation is critical.

Q: What safety features are included in the Bran Tip Filter-BTF?

A: This machine is equipped with an emergency stop button for immediate shutdown in case of emergencies, and is constructed following strict safety standards. The low noise operation and sturdy frame further contribute to the safer working environment.

Q: How does the cleaning process work for the BTF filter?

A: The filter is designed for easy cleaning. Operators can quickly access internal components thanks to its ergonomic design, making routine maintenance and mesh replacement simple and efficient. Both manual and automatic lubricating systems support smooth functioning during operation.

Q: When should after-sales service be contacted for the Bran Tip Filter-BTF?

A: You should reach out for after-sales service whenever you require maintenance, troubleshooting, technical assistance, or spare parts replacement. The service ensures timely support to minimize machine downtime and maintain optimal productivity.
